JAANHUEI P490 Plastic Lever Acting Drum Barrel Pump PP Manual Drum Barrel Pump Patented in USA Blue 53.5 inches (136 cm) PP Spout 11.8 oz. (350 cc) Pe
1.‚òÖIdeal for thicker liquids such as machine oil, alcohol, diesel fuel, kerosene, lubricant and dilute liquids. Easy to assemble.
2.‚òÖThree holes to adjust force point. Using in more thicker liquids, adjust more front point. Easy and save your time.

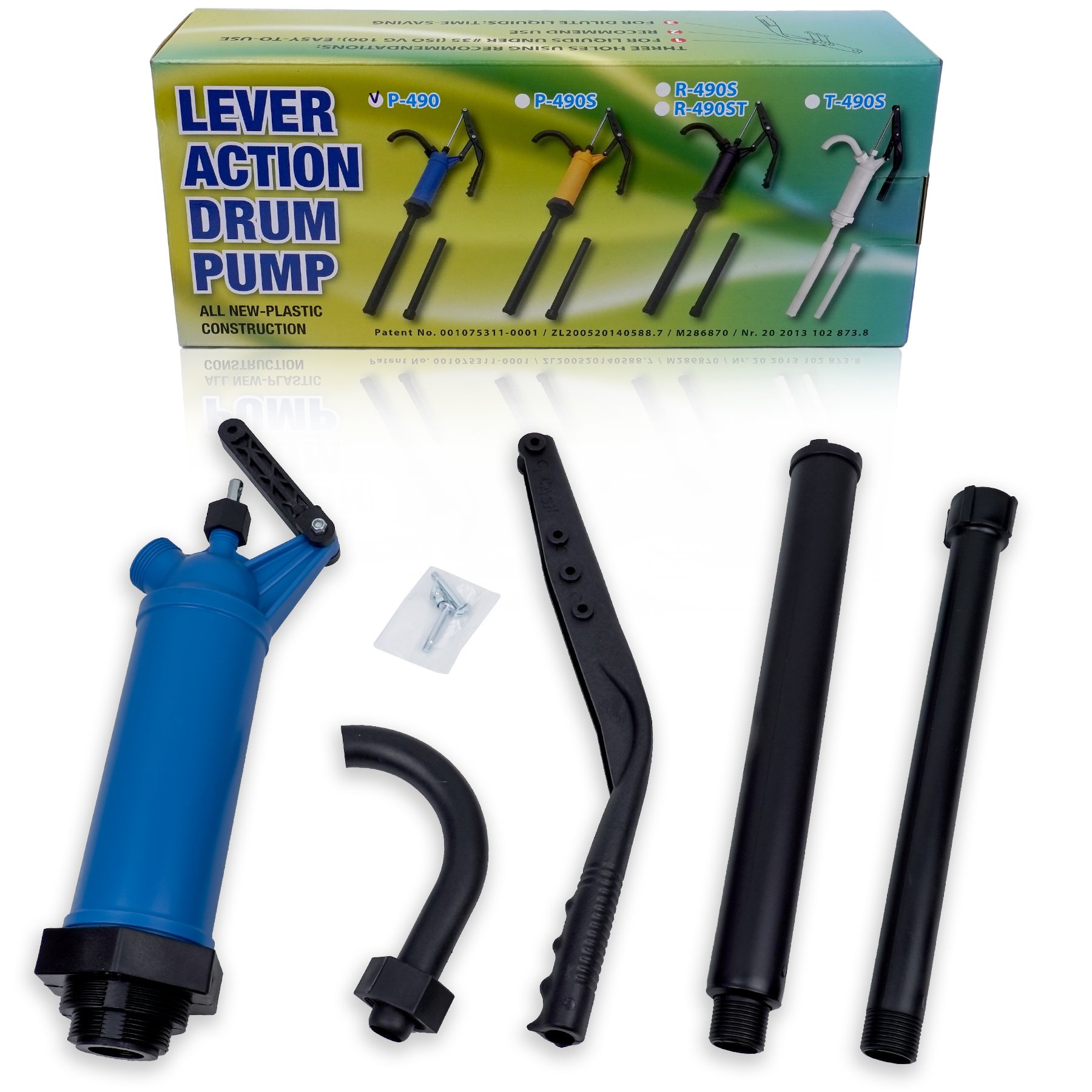

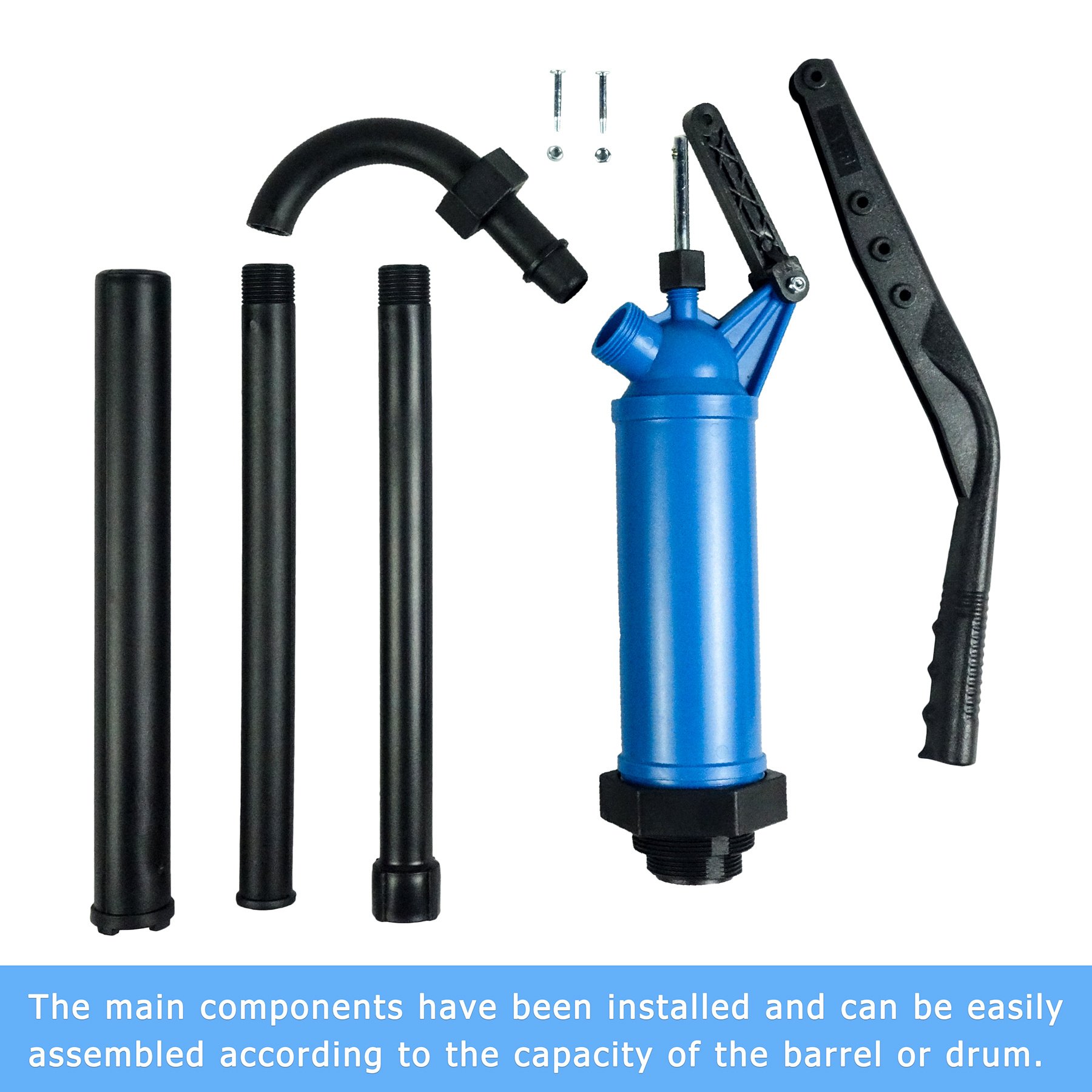

3.‚òÖAvailable Gallon Drum: 5, 15, 30, 55. Capacity: 11.8 oz. (350cc) per stroke. The main parts have been installed, and you can easily assemble according to the capacity of the barrel.
4.‚òÖMade in Taiwan. Patented in Taiwan, USA, China, European Union's Country. During this difficult period, if you have any question of order, please feel free to contact us.
5.‚òÖPremium Quality-You can Trust. Made of High Quality and Strong PP, all new-plastic construction, lighter than cast iron drum pump. Ideal Choice for your need.
Details:
P490 PP Plastic Lever Acting Drum Pump
★Lightweight and easy to assemble Drum Pump. It is a good choice to pump light liquids and Kerosene.
Features:
*Made of High Quality Materials:
-P490JH Plastic Lever Acting Drum Pump is made of high quality Polypropylene body; PP telescopic tube; steel rod; PP piston; PP spout; PP Handle.
-Which is light weight but strong. Easy to carry.
-The wall is thicker than previous generation of the suction pipe.

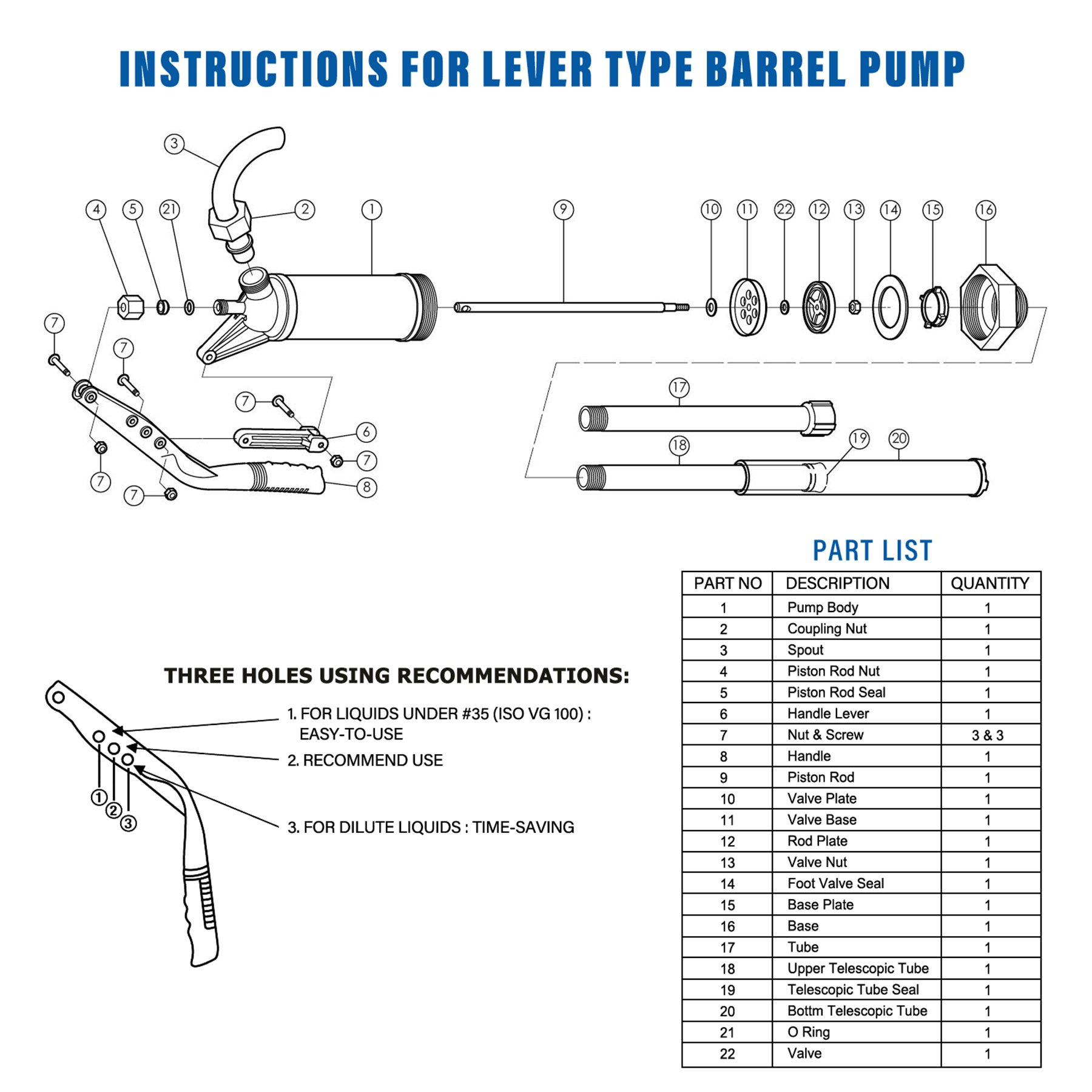

-If you want to install the pump on Barrels or disassemble from Drums; please twist the hexagon Base(Part 16) not the Pump Body(Part 1).
-For the best performance; the Base(Part 16) is tied with a screw. Please do not disassemble the Base(Part 16) from the Pump Body(Part 1).

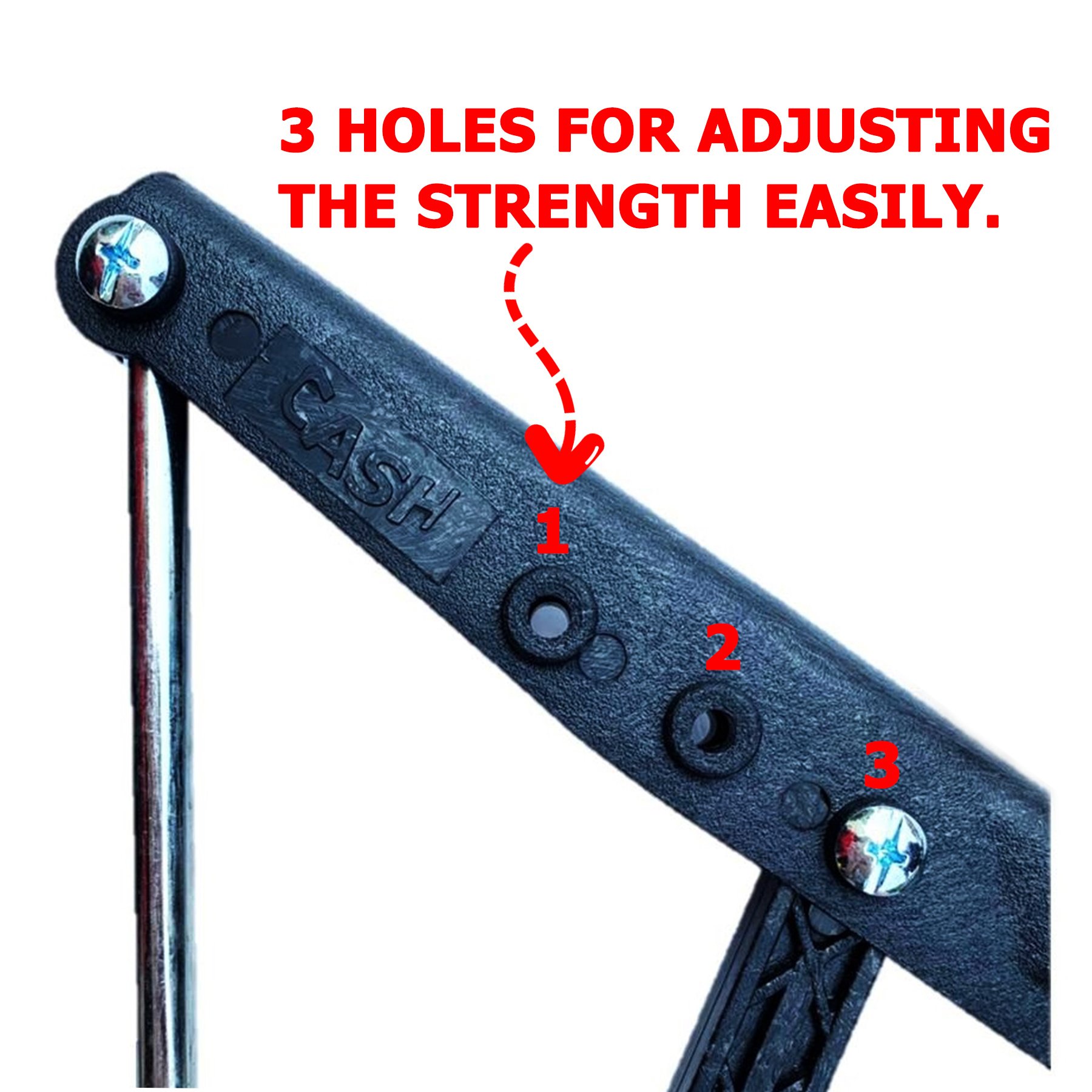

*Multi Viscosity Hole for Selection:
-According to the viscosity of the extracted liquid; the position of the shaft lock on the grip is adjusted; which is normally used in the middle; and the thicker lock is in the first hole.
-Adjustable flow rate dispenses approx 8; 10 or 12 oz per stroke.
-If you want to match output hose; the outlet pipe diameter is 23 mm.
*Suitable for Various Sizes of Barrels:

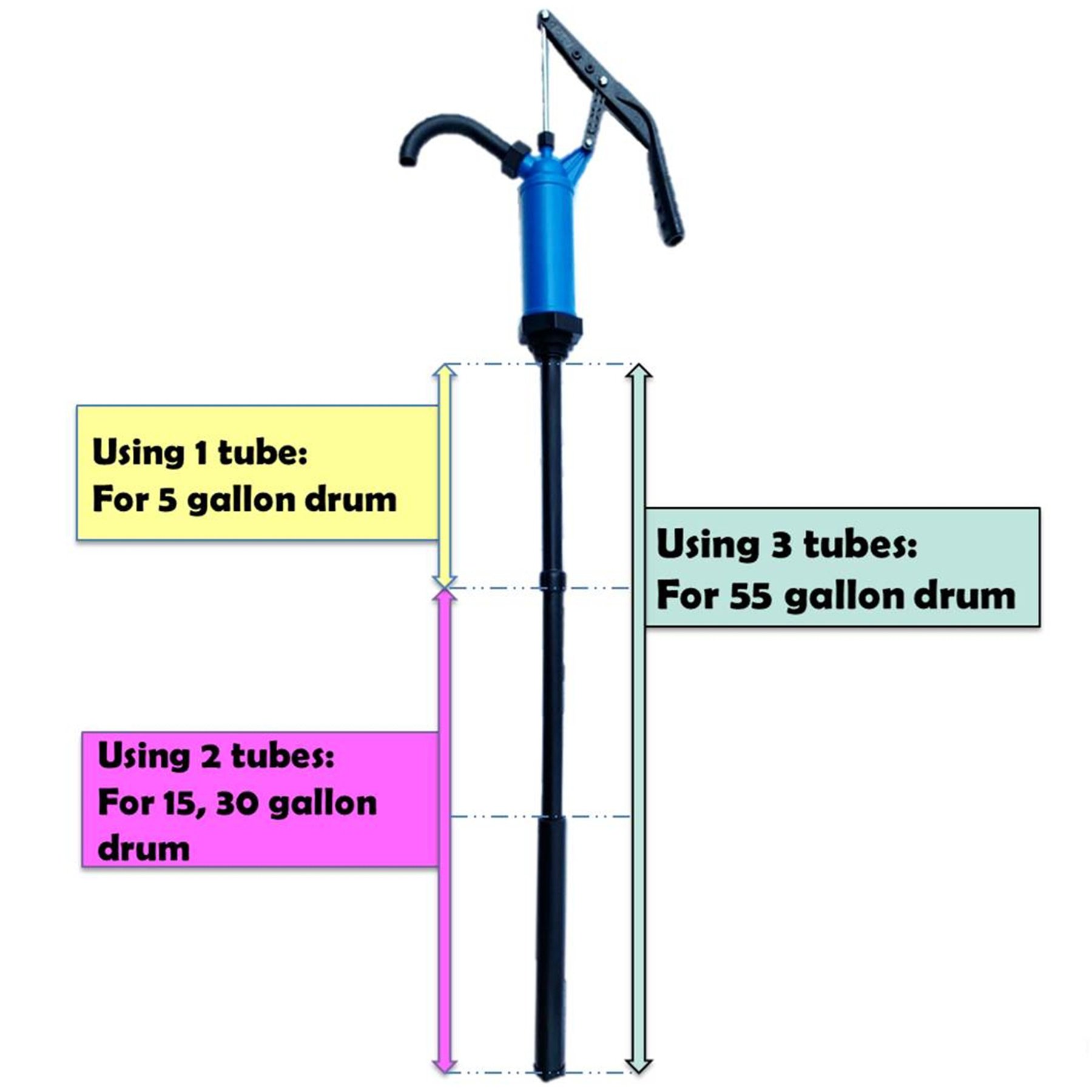

-Extend the tube according to the gallons; a total of three sections can be assembled.

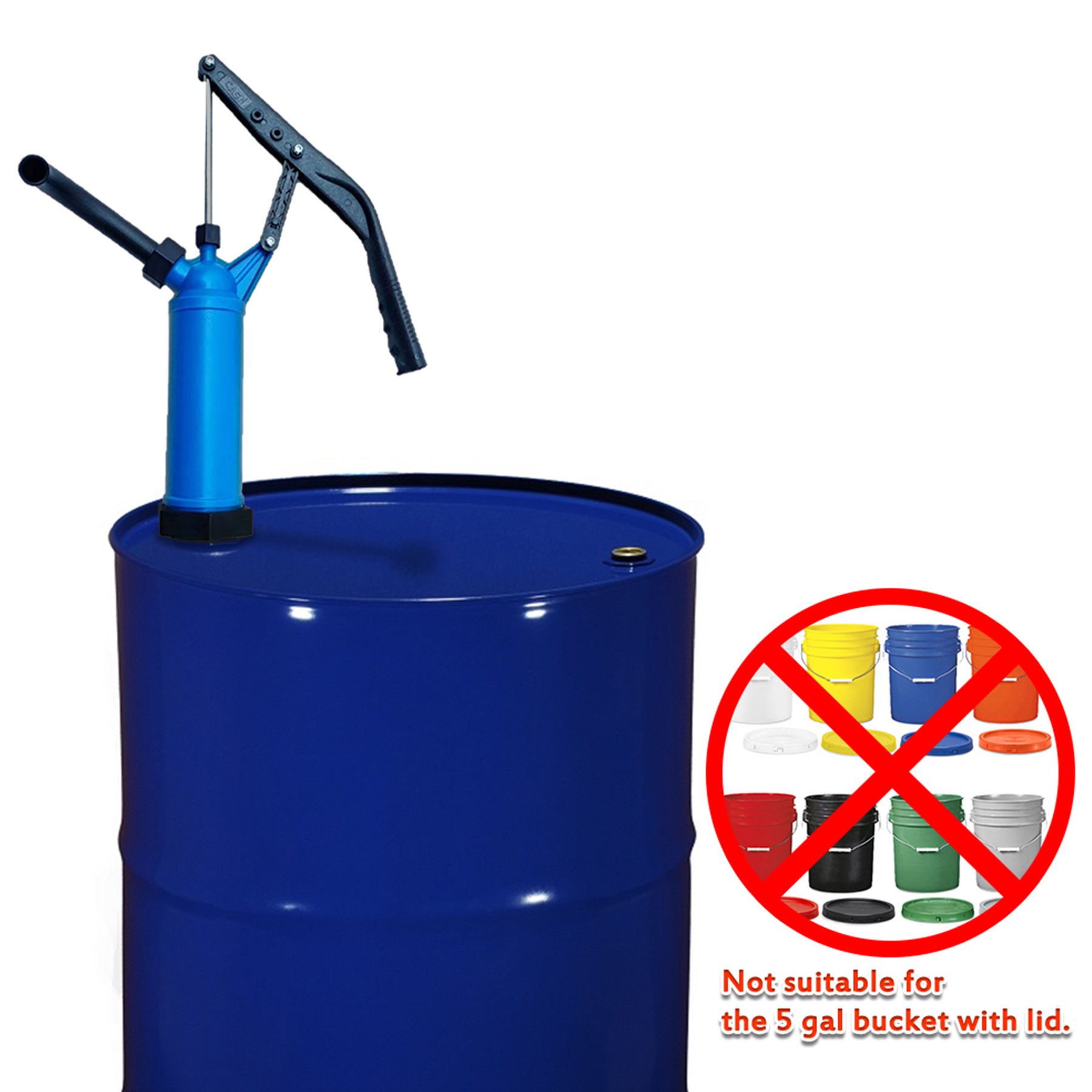

-Ideal for Gallon Drum: 5; 15; 30; 55 gal.
-Bung Adapter:Polyethylene with 2 inches NPT Thread.
*Applicable liquids:
-It is great for pumping machine oil; alcohol; diesel fuel; kerosene; lubricants.
-Do not use:Gasoline; Acids; Alkalis; Drinking Water and Fluid Viscosity is higher than ISO VG100.
-Not suitable for the rainwater recovery system.

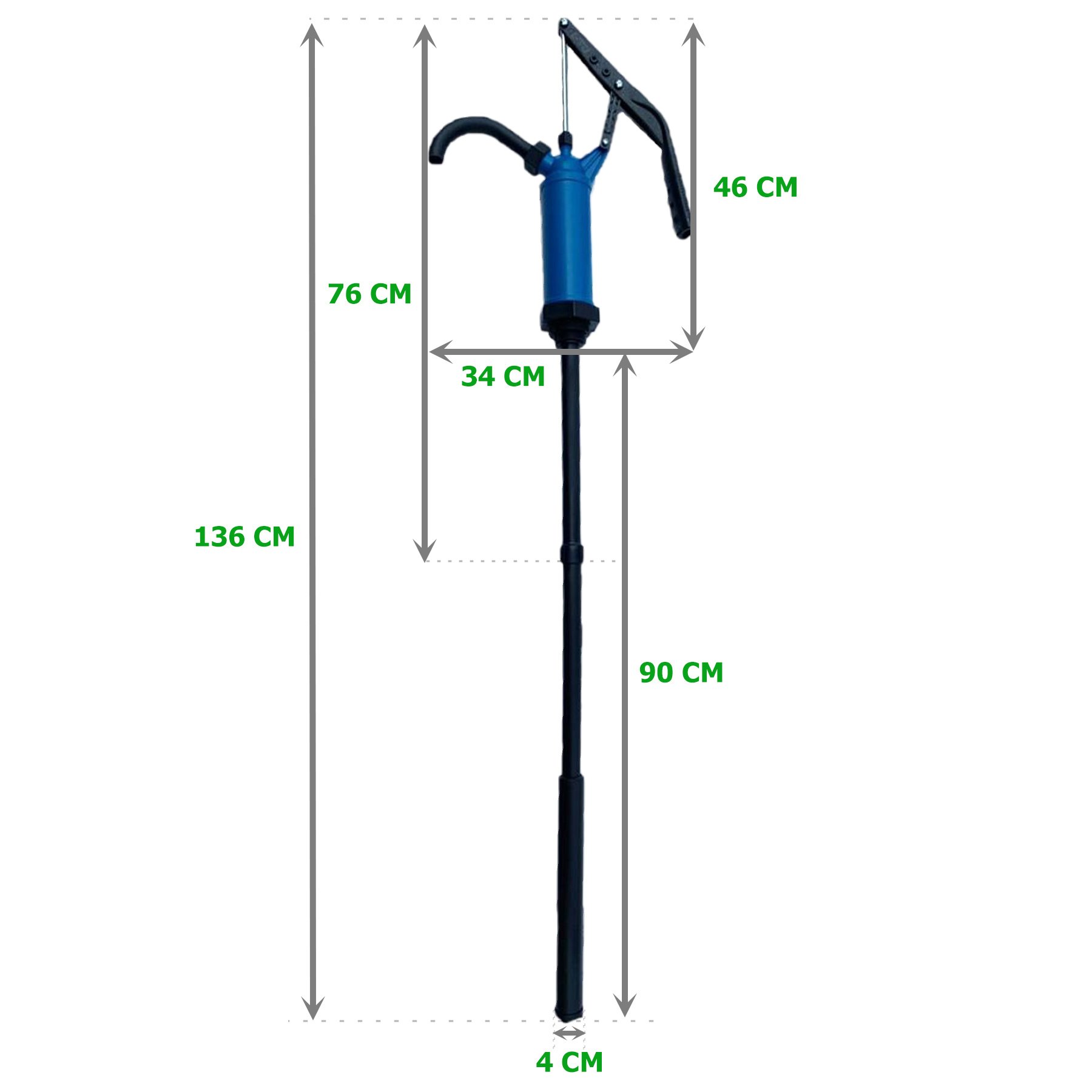

Specifications:
-Length: Approx 53.5 inches (136.0 cm)
-Width: Approx 13.3 inches (34.0 cm)
-Diameter of the suction tube: Approx 1.57 inches (4.0 cm)
-Pipe Wall Thickness: Approx 0.078~0.157 inches (0.2-0.4 cm)
-Made in Taiwan; High Quality.
